模块化游乐场

Working Modular Fairground

作者：Baron von Barron / 发布于：2024-10-23

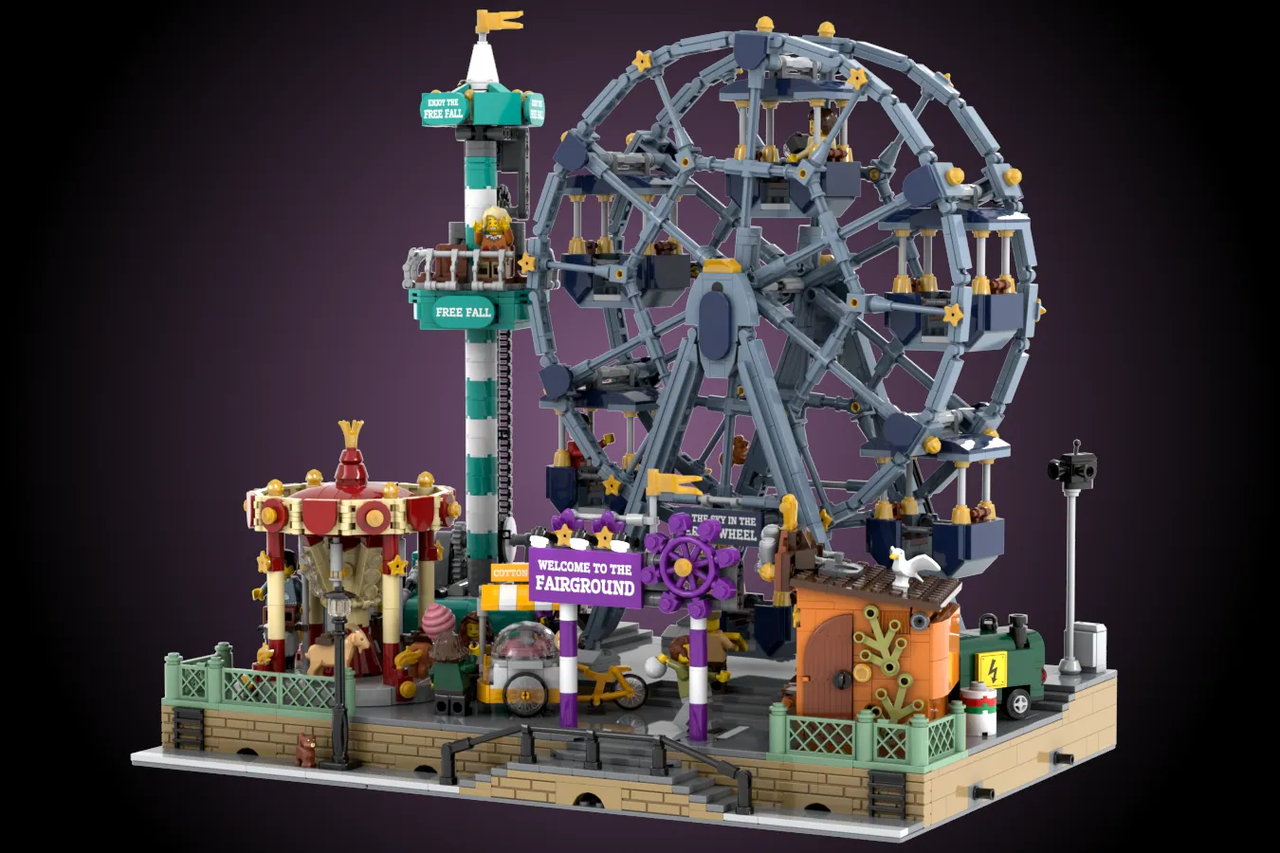

《可动模块化游乐场》是一个极具创意与互动性的乐高作品，灵感来自城市中一片充满欢乐的避风港——游乐场。它包含摩天轮、自由落体塔、旋转木马、棉花糖车和罐子投掷摊位等设施，每个部分都可独立运作，并通过后部的电动控制系统集中操控，由一个L电机驱动所有装置运行。

整座游乐场采用全模块化设计，便于拆分与重组，内含11个人仔，包括管理员、员工、游客和动物等，细节丰富。作品共使用约3000个零件，尺寸为28 x 41 x 36厘米。作者不仅实现了多种机械传动功能，还巧妙地还原了真实游乐场的氛围，打造出一个既适合展示又富有趣味性的模型，充分展现了乐高的无限创意与工程魅力。

🤖 以上为AI翻译概括，供参考。

Welcome to the Working Modular Fairground!

The Idea

In between all the loud hustle and bustle of the city with its huge buildings all along the streets, there's a little place where you can forget the everyday stress for a while and enter a world that's only made out of fun: the local fairground! Take a ride with the Ferris wheel and enjoy the view over the city, try to win the teddy at the can throwing booth, taste some of the city's best cotton candy at the mobile vendor, pick your favorite animal at the carousel and go for some rounds, and last, but not least, and only if you have enough courage, try out the newest attraction of the city, the free fall tower! But no matter which ride you prefer, just enjoy yourself and have a great time at the local fairground!

The Build

The build consists of:

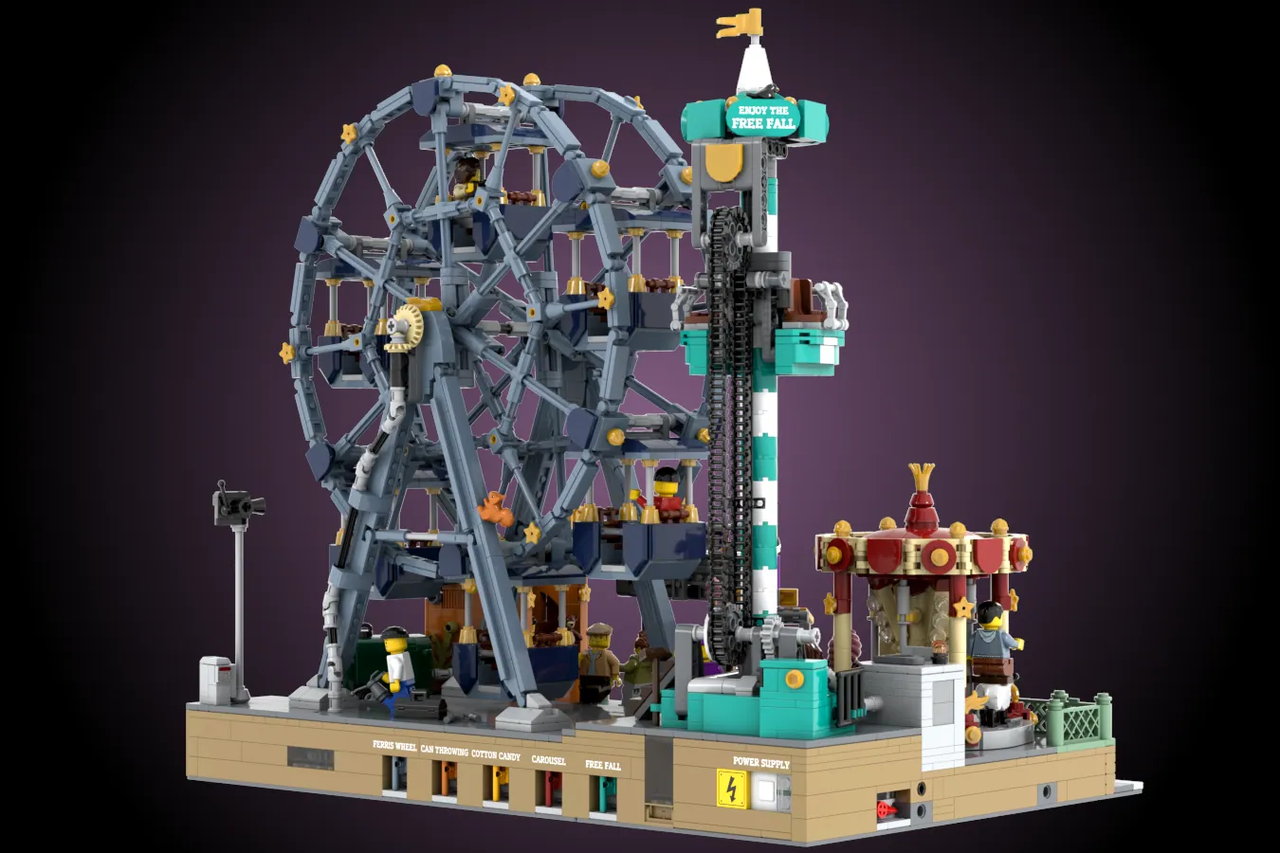

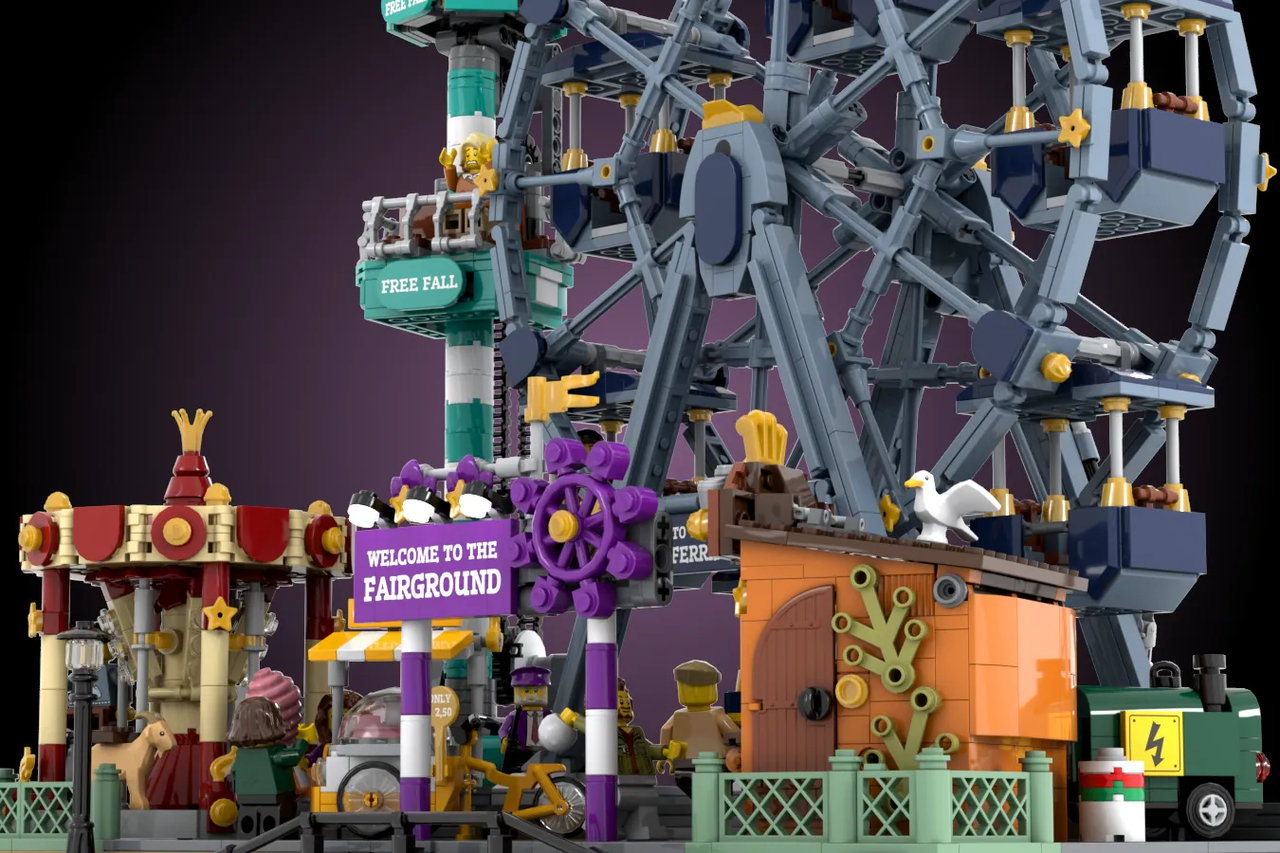

100% modular-compatible fairground with built-in electrically powered drive train and attraction control console at the rear

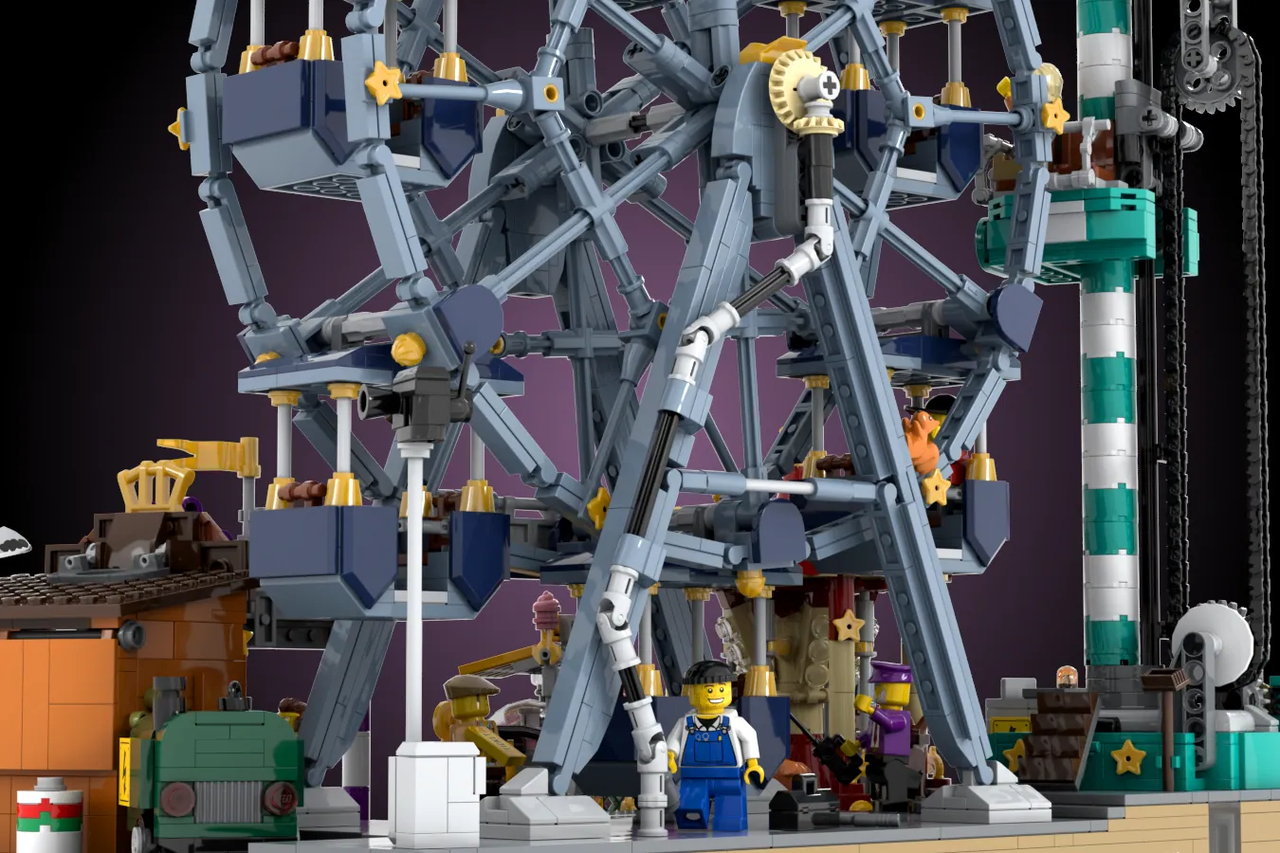

Ferris wheel with six cabins
Free fall tower with four seats and attached electric cabinet
Carousel with four riding animals
Cotton candy bike
Can throwing booth with two throwing areas and attached power generator

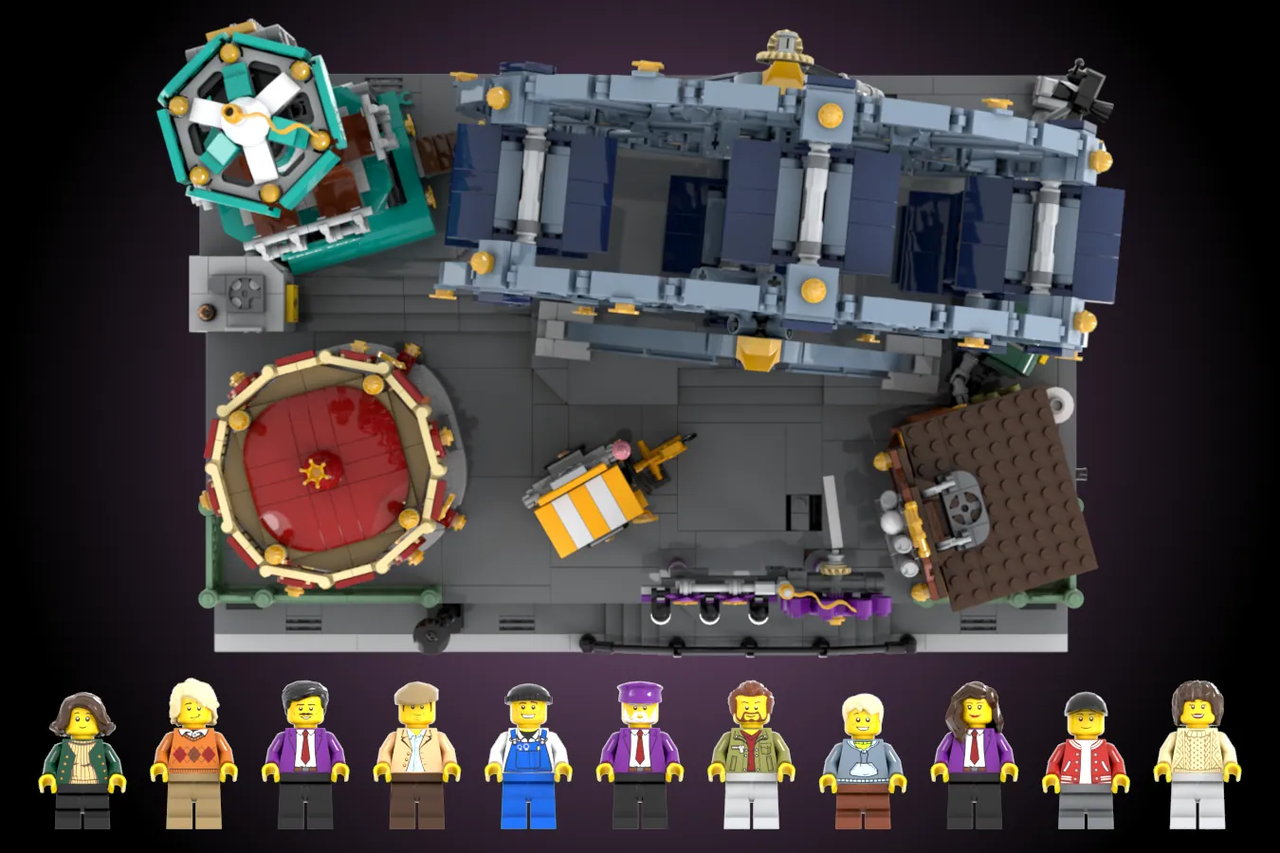

Fairground director, two employees, mechanic, seven visitors, and, as always, some animals

The Functionality

The functionality is the following:

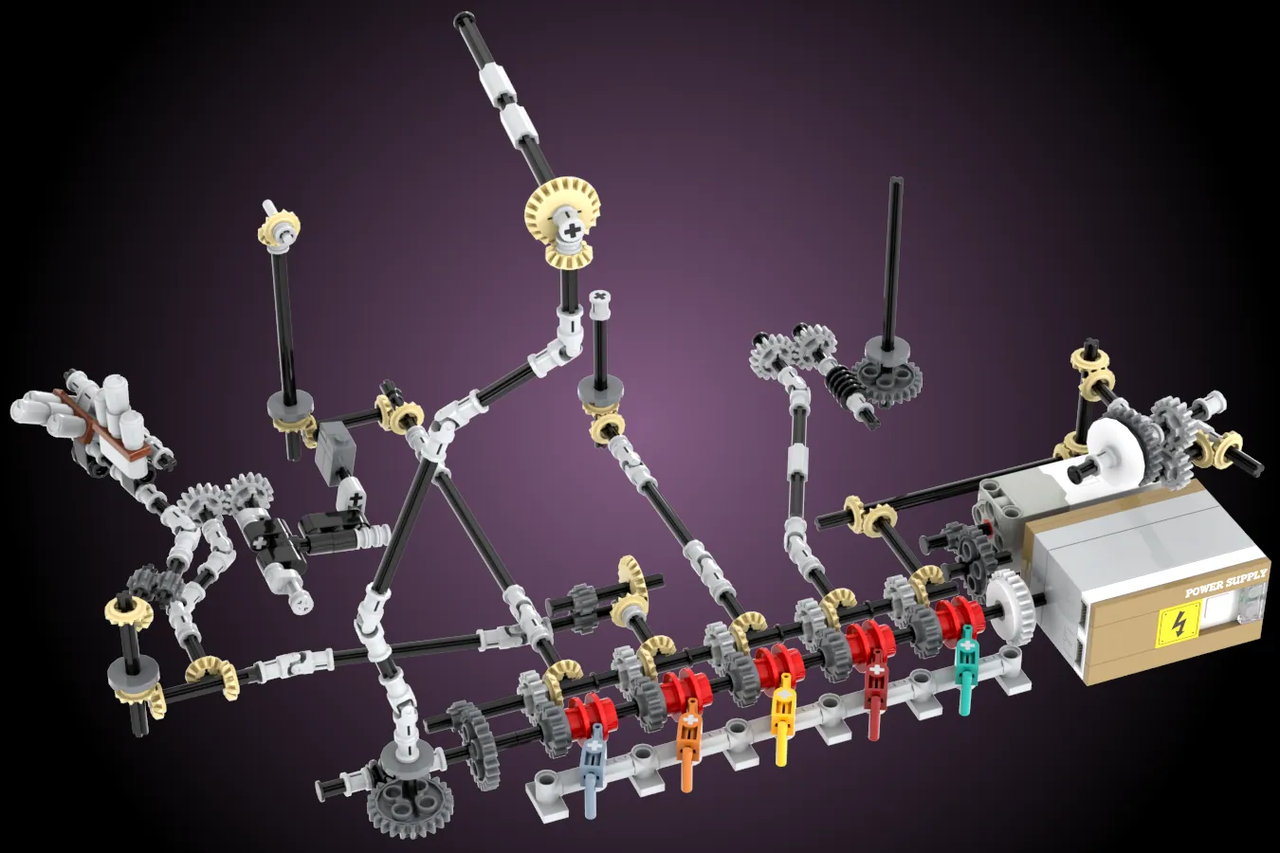

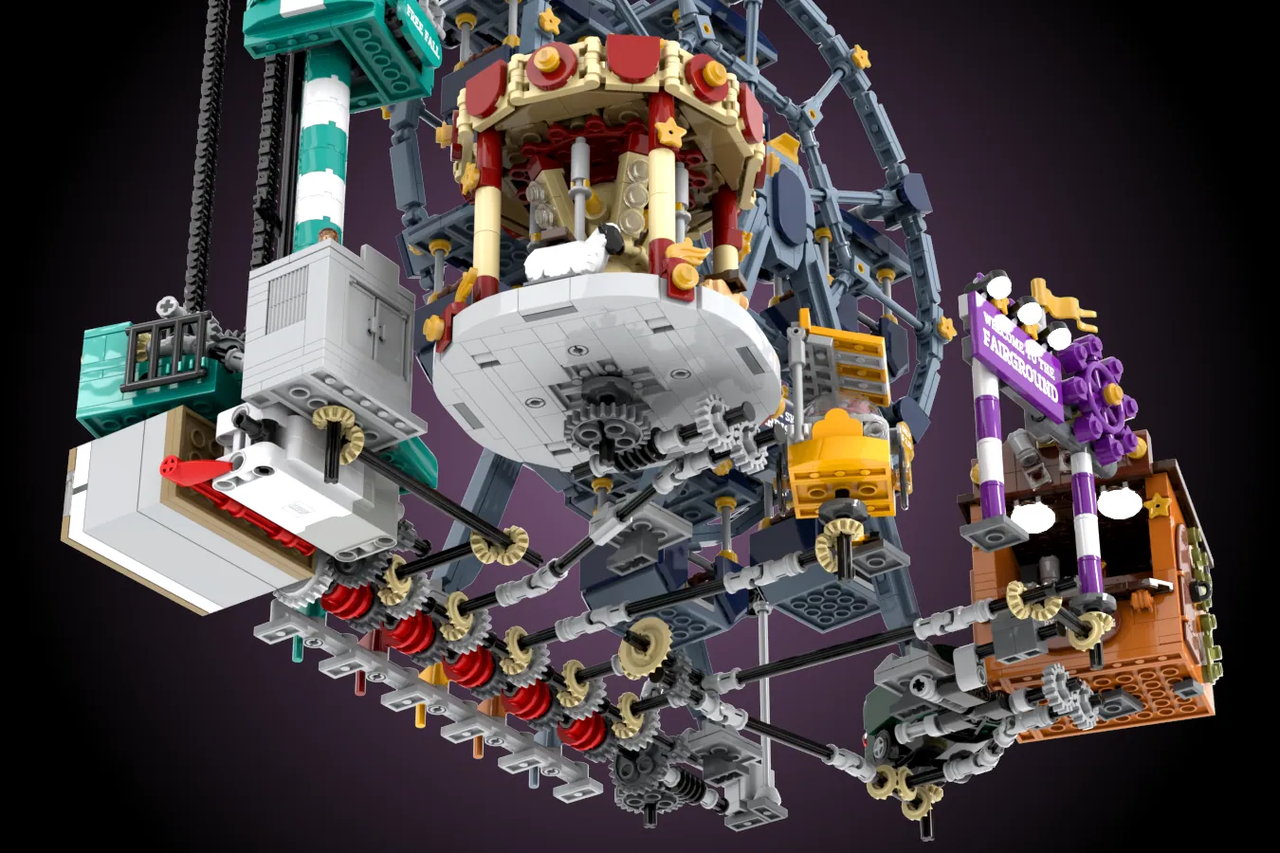

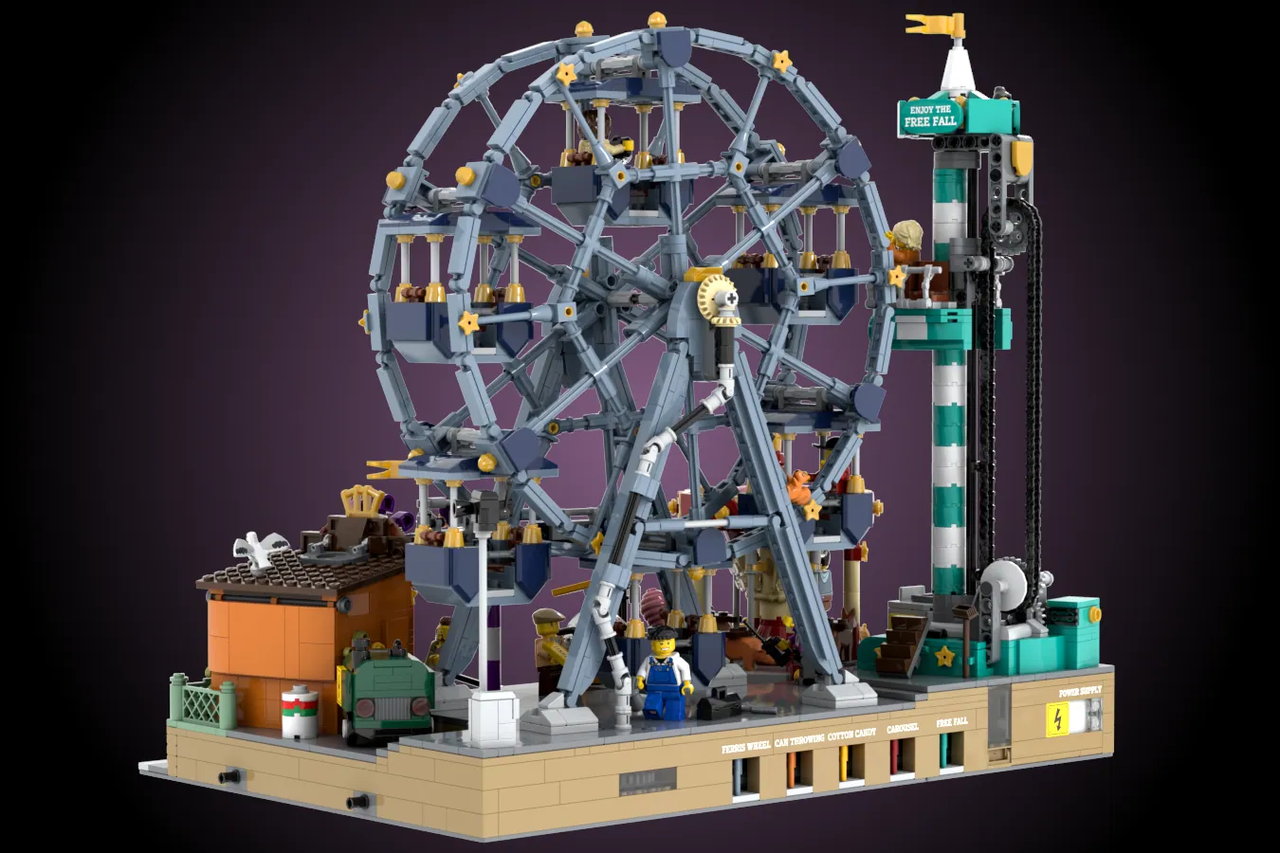

A central L motor propels a single main drive train with a transmission that is connected to all attractions; please also see image 14.

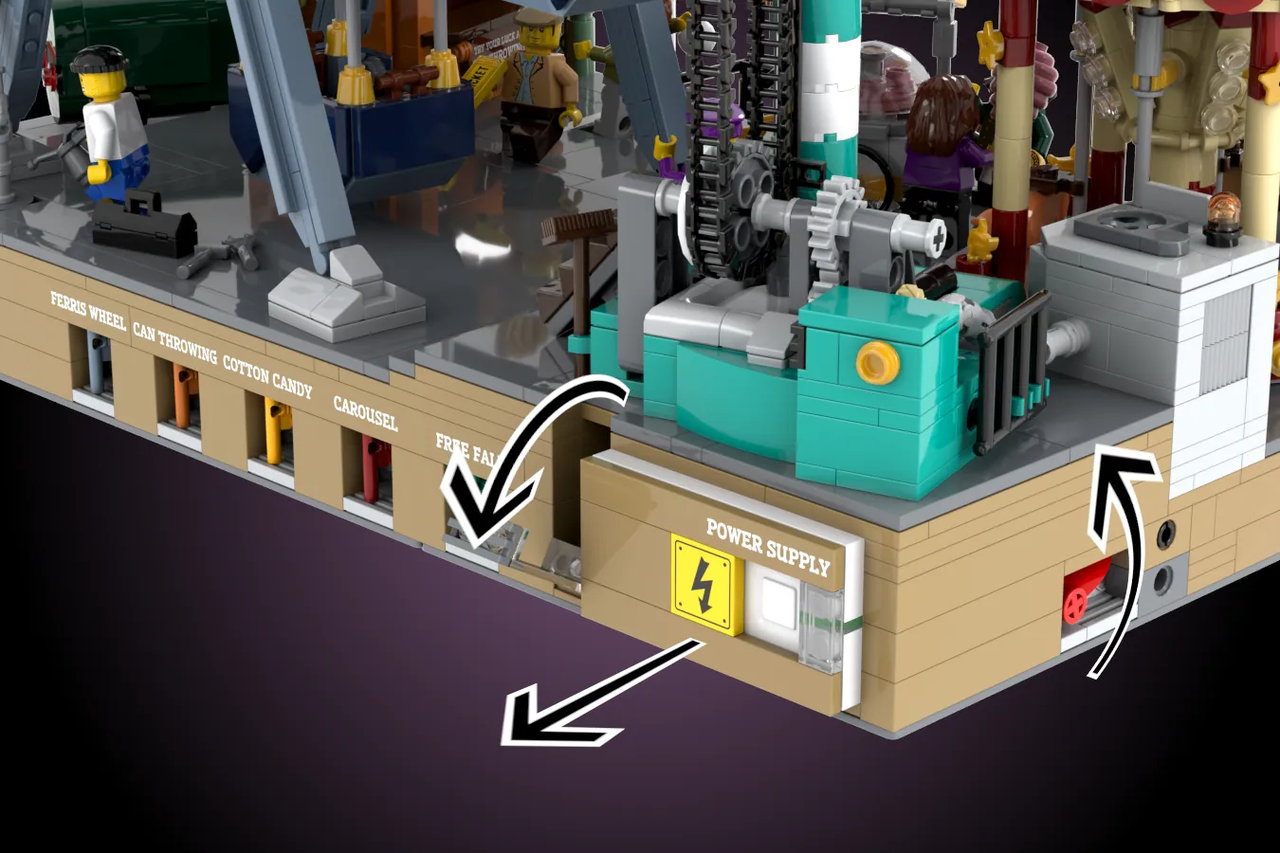

The power is supplied by an embedded battery box that can be easily ejected and swapped; please also see image 12.
Each attraction can be activated individually by their respective lever at the control console at the rear as follows; please also see image 11.

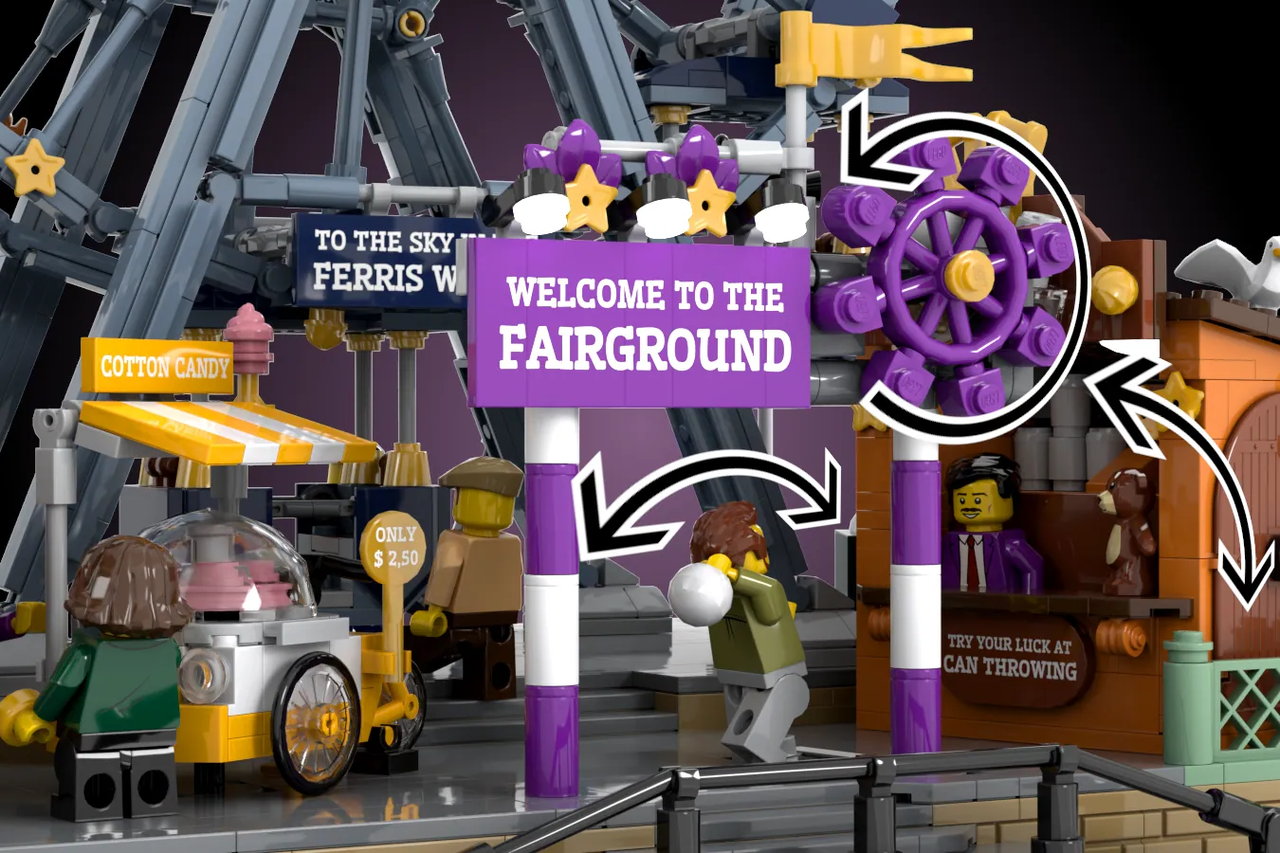

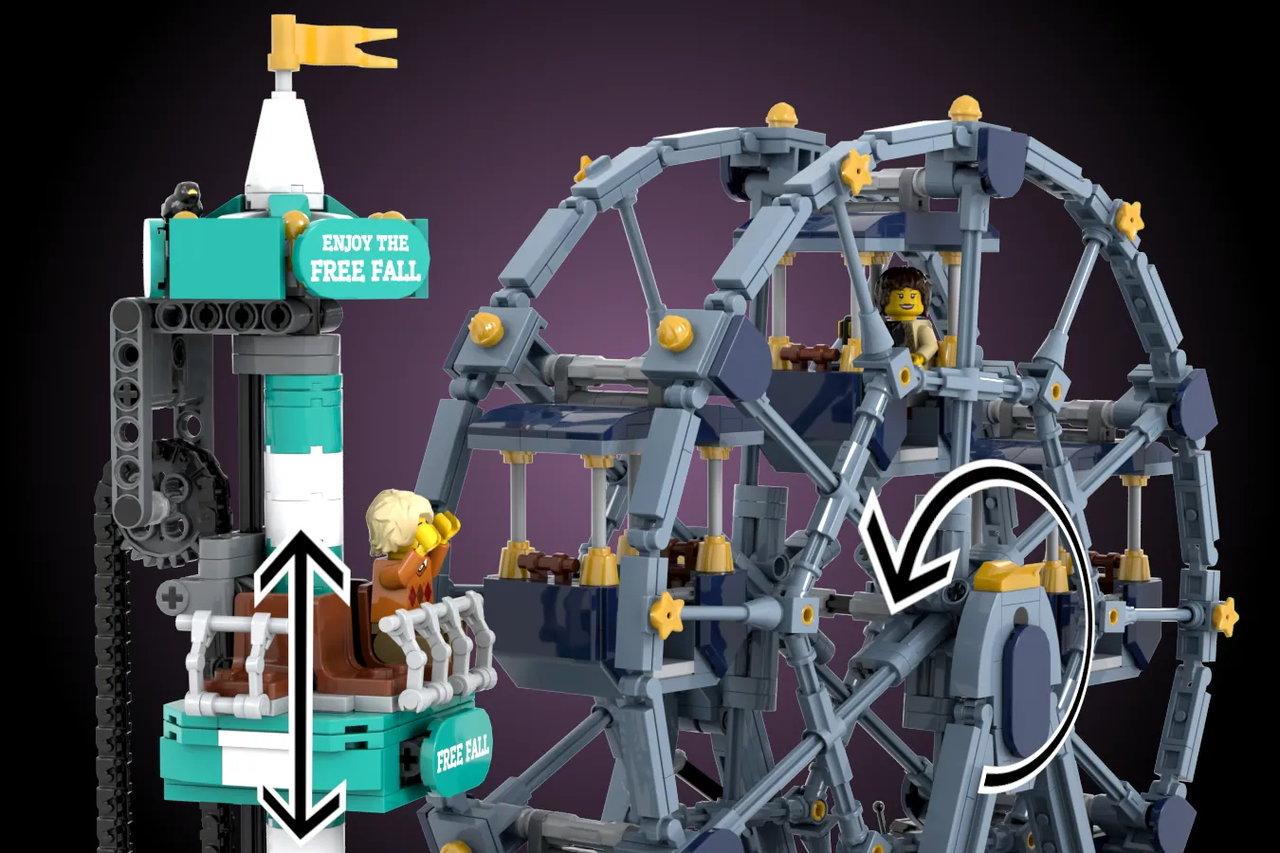

Blue lever: Rotates the Ferris wheel, while when in operation, the mini Ferris wheel at the entrance sign rotates too; please also see image 8 and 10.
Orange lever: Oscillates the can throwing visitor for- and backward, while when in operation, the cans at both throwing areas are overthrown and put back in place alternately; please also see image 10 and 14.

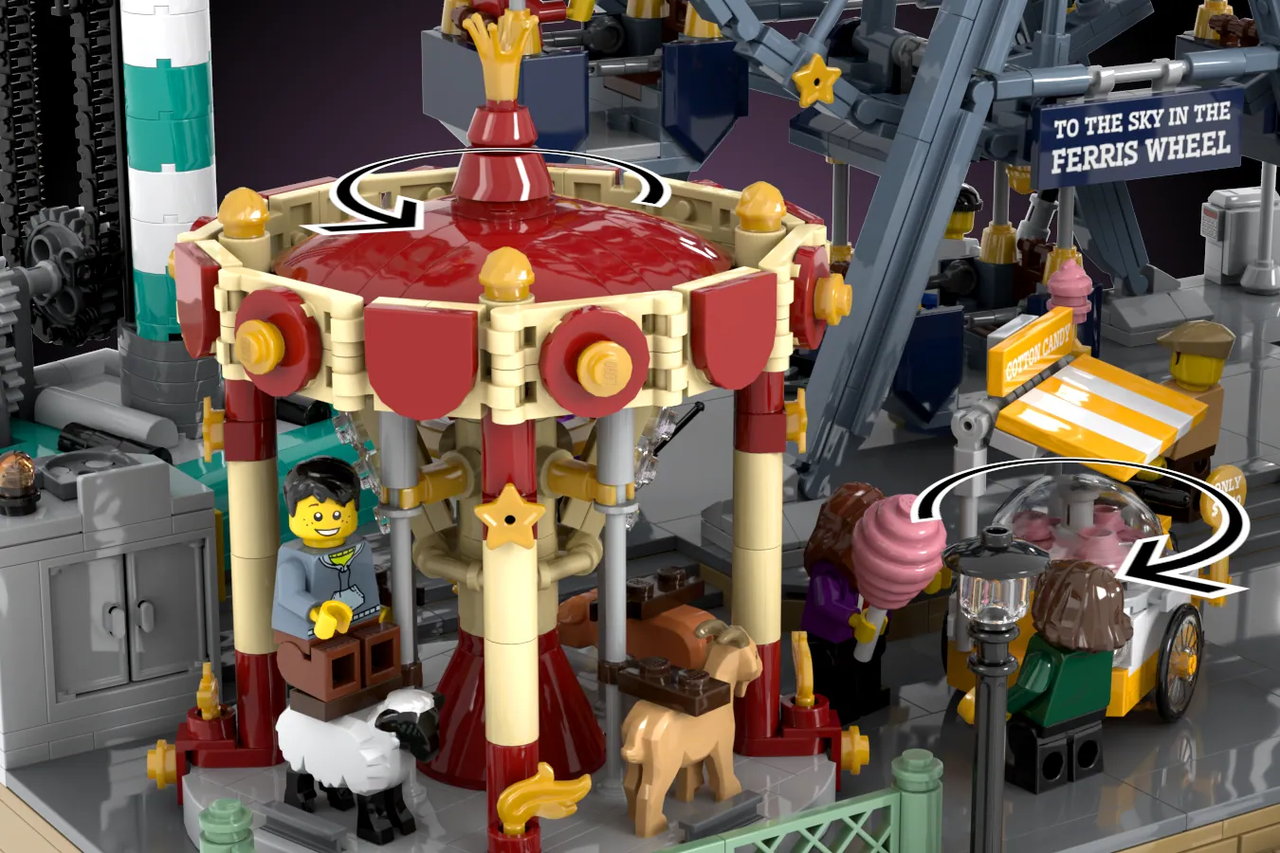

Yellow lever: Rotates the cotton candy in the bowl of the cotton candy bike; please also see image 9.
Red lever: Rotates the carousel; please also see image 9.
Turquoise lever: Operates the free fall tower, which has altogether three drops with customizable distances; please also see image 8.
